Polyethylene Pipe & Fittings

Polyethylene Pipe & Joint

Overview

Polyethylene pipes and fittings are resistant to cracking, offer excellent processability and jointing, are lightweight, and corrosion-resistant. They also excel in cost-performance, offering many advantages. Shinwa Sangyo provides the Polyethylene conduit system manufactured by Mitsui Chemicals. As pioneers in polyethylene pipes, we are committed to delivering high-quality products and services. Through the development of products tailored to our customers’ needs, we contribute to the gas industry.

Features

Resistance to Cracking

Polyethylene is a flexible material and possesses excellent resistance against mechanical stress and external impacts.

Processability & Jointing

Polyethylene pipes can be joined using various methods, including heat fusion and electrofusion.

Lightweight & Corrosion Resistance

Polyethylene is lightweight, making it easy to handle, and it is chemically stable, making it resistant to corrosion.

Cost-Performance

They have a long lifespan, and the costs for installation and maintenance are low, making them economical in the long run.

Products & Specification

Pipes (JIS K6774)

Pipe No.1 (Pipe Color: Black)

Aspect ratio of thickness – SDR(Basic In-Diameter / Basic Thickness)=11.0

Pipe No.1 Spec Table

U Pipe No.1 (Pipe Color: Blue)

Aspect ratio of thickness – SDR(Basic In-Diameter / Basic Thickness) = 13.5

U Pipe No.1 Spec Table

Pipe No.2 (Pipe Color: Orange)

Aspect ratio of thickness – SDR(Basic In-Diameter / Basic Thickness) = 17.0

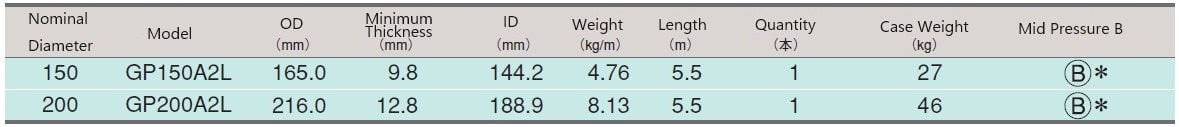

Pipe No.2 Spec Table

Applicable for Medium Pressure B (Recommended)

B* When applied to Medium Pressure B, there are stricter temperature restrictions than for low pressure.

For the applicability of tools for Medium Pressure B and precautions in use, please check with the tool manufacturer.

Pipe Image

Polyethylene Pipe’s Maximum Pressure by Temperature

Temperature pressure

The Application of Medium Pressure to Polyethylene Pipes.

The interpretation examples of ‘Technical Standards for Gas Work Products’ were revised as of March 31, 2003.

Based on this, the applicable pressure for polyethylene materials conforming to JIS (JIS K6774 Polyethylene Pipes for Gas, JIS K6775-1 to 3 Polyethylene Pipe Fittings for Gas) has been expanded to less than 0.3MPa (Medium Pressure B).

When applying polyethylene pipes to Medium Pressure B, please refer to the ‘Main and Branch Pipe Guidelines, Supply Pipe & Internal Pipe Guidelines (Medium Pressure Polyethylene Pipe Supplementary Edition)’ issued by the Japan Gas Association.

EF Fittings (JIS K6775-3)

Socket

(unit:mm)

Socket Spec Table
Socket Diagram

Long Socket

(unit:mm)

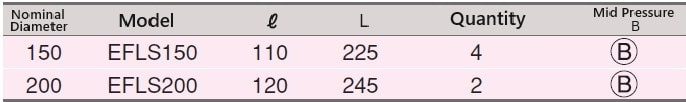

Long Socket Spec Table
Long Socket Diagram

One Side Socket

(unit:mm)

One SIde Socket Spec Table
One SIde Socket Diagram

Different Diameter Socket

(unit:mm)

Different Diameter Socket Spec Table
Different Diameter Socket Diagram

Different Diameter Elbow

(unit:mm)

Different Diameter Elbow Spec Table

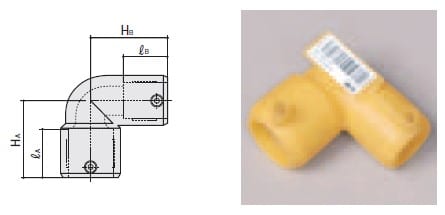

Different Diameter Elbow Diagram

90 degrees Elbow

(unit:mm)

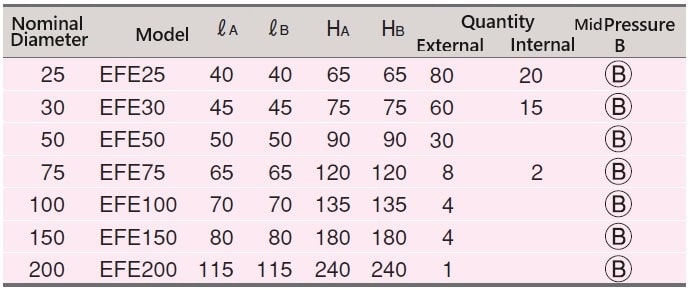

90 Degrees Elbow Spec Table
90 Degrees Elbow Diagram

90 Degrees One Side Elbow

(unit:mm)

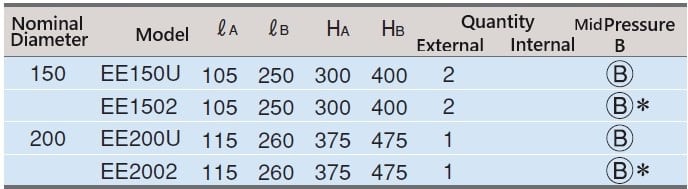

90 Degrees One Side Elbow Spec Table
90 Degrees One Side Elbow Diagram

45 Degrees Elbow

(unit:mm)

45 Degrees Elbow Spec Table
45 Degrees Elbow Diagram

45 Degrees One Side Elbow

(unit:mm)

45 Degrees One SIde Elbow Spec Table

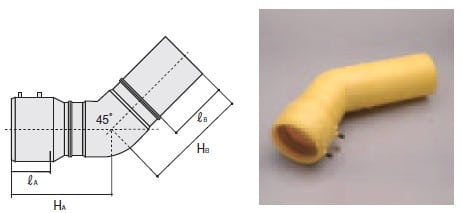

45 Degrees One Side Elbow Spec Table

22.5 Degrees Elbow

(unit:mm)

22.5 Degrees Elbow Spec Table
22.5 Degrees Elbow Diagram

22.5 Degrees One Side Elbow

(unit:mm)

22.5 Degrees One SIde Elbow
22.5 Degrees One SIde Elbow Diagram

Street Elbow

(unit:mm)

Street Elbow Spec Table

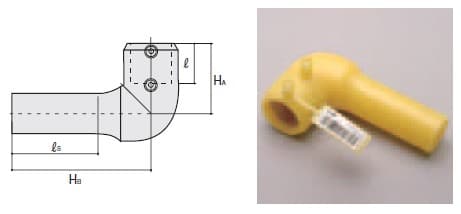

Street Elbow Diagram

S Elbow

(unit:mm)

S Elbow Spec Table
S Elbow Diagram

Angle-Adjustable Elbow

(unit:mm)

Angle-Adjustable Elbow Spec Table

Japan Gas Association: Technical Award

Θ means the adjustable angle.

Angle-Adjustable Elbow Diagram with Technical Award

Cap

(unit:mm)

Cap

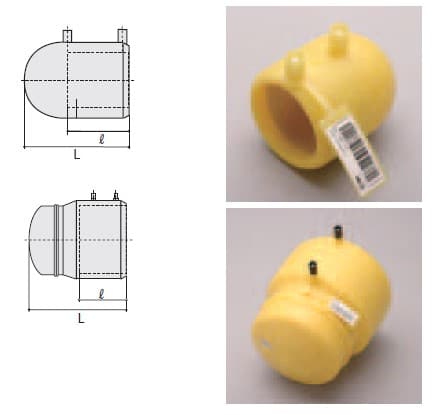

Cap diagram

Tee

(unit:mm)

Tee Spec Table

B* Medium Pressure B is available. When applied under Medium Pressure B, there are stricter environmental temperature restrictions than for low pressure. For the applicability of tools under Medium Pressure B and usage precautions, please check with the tool manufacturer.

Tee Diagram

Different Diameter Tee

(unit:mm)

Different Diameter Tee Spec Table
Different Diameter Tee Diagram

Air Purge Tee

(unit:mm)

Air Purge Tee Spec Table
Air Purge Tee Diagram

Saddle

(unit:mm)

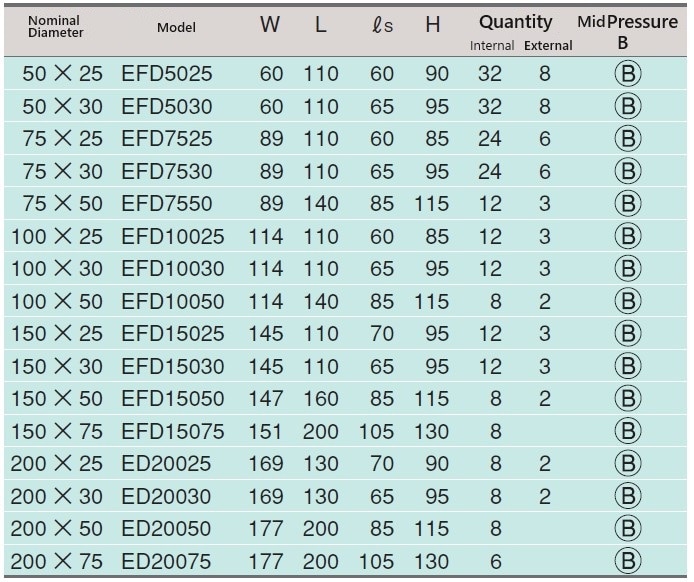

Saddle Spec Table
Saddle Diagram

Service Tee – Straight Type

(unit:mm)

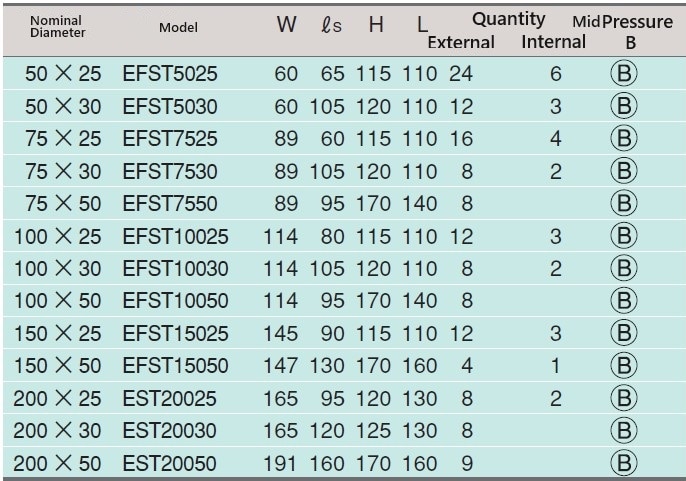

Service Tee - Straight Type Spec Table

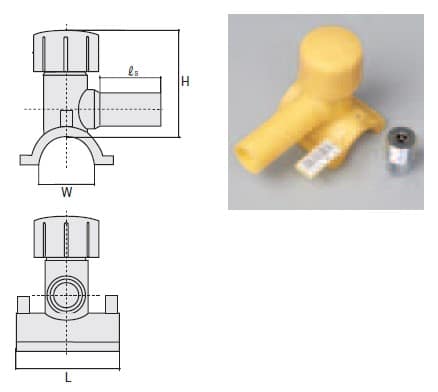

Service Tee - Straight Type Diagram

Service Tee – Pipe Shaft Type

(unit:mm)

Service Tee - Pipe Shaft Type Spec Table
Service Tee - Pipe Shaft Type Diagram

Repair Saddle

(unit:mm)

Repair Saddle Spec Table

B* Medium Pressure B is available. When applied under Medium Pressure B, there are stricter environmental temperature restrictions than for low pressure. For the applicability of tools under Medium Pressure B and usage precautions, please check with the tool manufacturer.

Repair Saddle Diagram

Service Tee ( Same Diameter Branch)

(unit:mm)

Service tee - Same Diameter Branch 50 75 100 Spec Table

(General Special Notes on Service Tees)

A slight gap is provided between the hole saw and the screw part of the service tee body to reduce the drilling torque. Due to this, bypass gas might be emitted from this gap after drilling and before removing the tapping tool and closing the service tee cap. Please be cautious during installation. For equal diameter branches of 50, 75, and 100, please use the clamps indicated below.

To apply to same branch 50, 75, and 100, use the following clamp.

Saddle Clamp 50:
ED-50 (Matsuzaka Manufacturing)
313221 (REX INDUSTRIES )

Saddle Clamp 75:
ED-75 (Matsuzaka Manufacturing)
313222 (REX INDUSTRIES )

Saddle Clamp 100:
ED-100 (Matsuzaka Manufacturing)
313223 (REX INDUSTRIES )

Service Tee - Same Diameter Branch 50 75 100 diagram

Service Tee (Same Diameter Branch 150, 200)

(unit:mm)

Service Tee (Same Diameter Branch 150, 200) Spec Table

Use dedicated tools to apply.

Japan Gas Assosiation: Technical Award 2017

Service Tee (Same Diameter Branch 150, 200) Diagram

Bypass Saddle

(unit:mm)

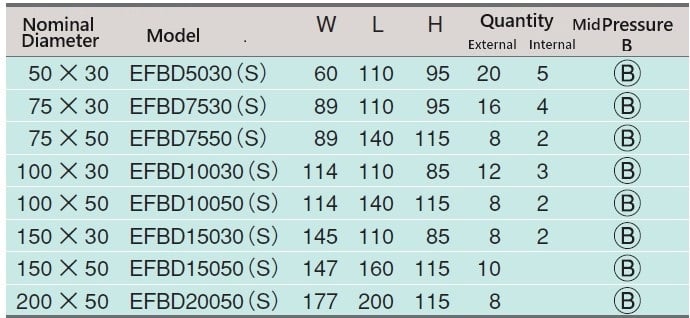

Bypass Saddle Spec Table

The standard product comes with a hole saw specification. However, there is also a seal plug specification (marked with an ‘S’). Please specify when placing an order.

B* Medium Pressure B is available. When applied under Medium Pressure B, there are stricter environmental temperature restrictions than for low pressure. For the applicability of tools under Medium Pressure B and usage precautions, please check with the tool manufacturer.

Bypass Saddle Diagram

Ball Valve

(unit:mm)

Ball Valve Spec Table

B△: Applicable for Medium Pressure B. However, a separate inspection is required.

B☆: During application to Medium Pressure B, it may be unsuitable for Medium Pressure B depending on the environmental temperature used.

For the applicability of tools under Medium Pressure B and precautions in use, please check with the tool manufacturer.



Ball Valve Diagram

Ask us about the medium-pressure B when ordering

This product is a joint development of Mitsui Chemicals Production & Resources and Daiming Metal Industry.

※ The valve is equipped with a stopper for its open/close position. In case of mishandling (excessive force when operating the valve), the structure is designed to break the stopper to prevent damage to the valve body. To prevent mishandling, always use the dedicated valve opener rod when operating. (Even if the stopper breaks, it will not affect the opening/closing operation or the fluid shearing performance.)

Ball Valve Diagram

Ball Valve Diagram -A Location that Bears the Weight

Ball Valve Diagram -location that does not bear the weight diagram

Ball Valve Diagram -A Location that does not Bear the Weight

Transition Fittings

Straight for Steel Pipe

(unit:mm)

Straight for Steel Pipe Spec Table

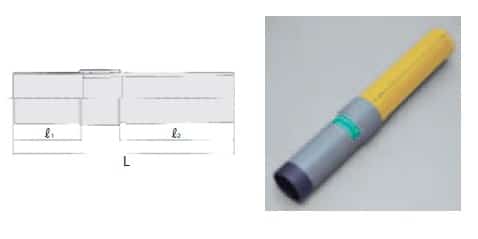

Straight for Steel Pipe Diagram

Straight for Cast Iron Pipe TM

(unit:mm)

Straight for Cast Iron Pipe TM Spec Table
Straight for Cast Iron Pipe TM Diagram

Straight for Cast Iron Pipe GM

(unit:mm)

Straight for Cast Iron Pipe GM Spec Table
Straight for Cast Iron Pipe GM Diagram

Mechanical Straight

(unit:mm)

Mechanical Straight Spec Table

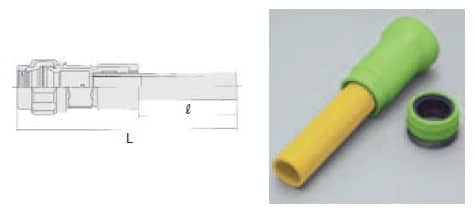

Mechanical Straight Diagram

Female Thread Elbow

(unit:mm)

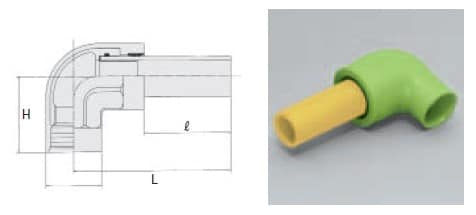

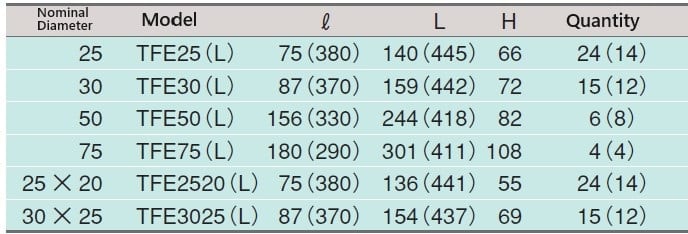

Female Thread Elbow Spec Diagram
Female Thread Elbow Diagram

Mechanical Elbow

(unit:mm)

Mechanical Elbow Spec Table

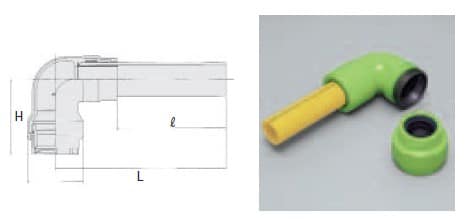

Mechanical Elbow Diagram

Service Tee

(unit:mm)

Service Tee Spec Table

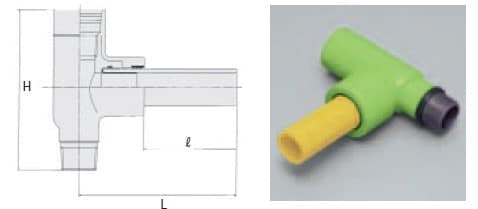

Service Tee Diagram

Valve Tee

(unit:mm)

Valve Tee Spec Table
Valve Tee Diagram

Water Trap

Water Trap Fitting

(unit:mm)

Water Trap Spec Table

The water trap is used at a maximum operating pressure of less than 0.1 MPa.

Water Trap Diagram

Tools

The MMS Recommended Tool System:

Mitsui Chemicals Production & Resources Inc. and Sekisui Chemical Co., Ltd. have established certain evaluation criteria for tools used in the piping work of polyethylene pipes and fittings for gas. Tool manufacturers display a recommendation mark in catalogs and leaflets for tools that meet these evaluation criteria.

Socket Clamp Image

Socket Clamp

  • 20A ‣ 30A (Rex Industries)
  • 50A ‣ 75A (Rex Industries)
  • 75A ‣ 100A (Rex Industries)
  • 100A ‣ 150A (Rex Industries) – ①
  • 150A ‣ 200A (Rex Industries)

Tee Clamp

  • 25A ‣ 30A (Rex Industries) – ②
  • 50A ‣ 75A (Rex Industries) – ③
  • 75A ‣ 100A (Rex Industries) – ④

Elbow Clamp

  • 50A ‣ 75A ‣ 100A (Rex Industries) – ⑤
    (Use for Socket, Elbow, Tee)
  • 30A / 50A Dual-Use (Rex Industries) – ⑥
    To extract service tees (shaft type) – otional liner for 25A is available
  • 150A / 200A (Rex Industries) – ⑦
  • 150A / 200A (Matsuzaka Cast Steel) – ⑧
Saddle Clamp

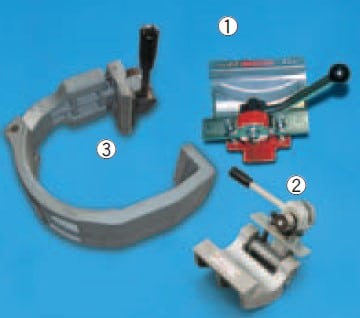

Saddle Clamp

  • 50A, 75A, 100A (Matsuzaka Cast Steel) – ①
  • 50A, 75A, 100A  (Rex Industries) – ②
  • 50A, 100A (Rex Industries) – ③
Saddle Scraper

Saddle Scraper

  • Drive Unit: 50A – 200A – ①
  • Casing Unit: (Omi Industry)
    50A, 75A, 100A, 150A, 200A – ②
  • Plane  (Rex Industries) – ③
  • Plane Replacement Knife (Rex Industries) – ④
  • Saddle Scraper (Rex Industries) – ⑤
Socket Scraper

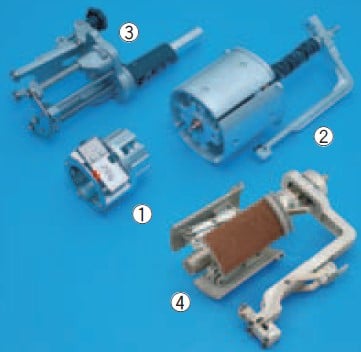

Socket Scraper

  • Scraper: (OSAKI PRECISION) – ①
    50A, 30A, 50A, 75A
  • Scraper: (OHOKA SEISAKUSHO) – ②
    25A, 30A, 50 – 100A, 150A ‣ 200A
  • Large-Diameter Manual Scraper: (Nishiyama) - ③
    100A – 200A
  • Turn Shaver: (OSAKI PRECISION) – ④
    75A‣100A, 150A‣200A

For the equal diameter branch 100, after fusion, cutting of the spigot section is not allowed.

Cold Tapping Tool

Cold Tapping Tool

  • Body 25 – 50A, 75A – ①
  • Tapping Knife 25A, 30A, 50A, 75A – ②
  • Ratchet Wrench – ③
  • Chip Removal Rod (Punch) (Rex Industries) – ④
Air Leakage Test

Air Leakage Test

  • Air Stopper: – ①
    25A ‣ 30A, 50A, 75A 100A , 150A, 200A
  • Air Leak Tester –
  • Hose End Adapter (Rex Industries) – ③
    When using a manometer for the airtightness test and for air purging
Service Tee Tapping Tool

Service Tee Tapping Tool

25A:
  • Straight Connection Type (Rex Industries)
30A:
  • Straight Connection Type (Rex Industries)
  • Pipe Shaft Type (Rex Industries) & (OHOKA SEISAKUSHO)
50A:
  • Straight Connection Type (Rex Industries) & (OHOKA SEISAKUSHO)
  • Pipe Shaft Type (Rex Industries) & (OHOKA SEISAKUSHO)
75A‣100A Dual-Use
  • Pipe Shaft Type (OSAKI PRECISION)

For 30A and 50A, there are tube straighteners that are also usable for tube axes (made by Rex and Ohoka Seisakusho Works).

Pipe Cutter

Pipe Cutter

  • Pipe Cutter (Rex Industries) & (Matsuzaka Cast Steel) – ①
    25A‣30A, 50A‣75A, 75A‣100A, 150A‣200A
  • Ratchet-Style Single-Blade Cutter – ②
    • 75A‣100A (Rex Industries)
    • 15A‣200A (Matsuzaka Cast Steel)
Squeeze Off Tool

Squeeze Off Tool (Izumi Seiki Manufacturing)

SO-1:
  • Diameter: 25A‣30A
  • Size (Width x Height) : 176 x 276 mm
  • Weight: 5.4kg
  • System: Hydraulic Separated
SO-2:
  • Diameter: 25A – 50A
  • Size (Width x Height) : 234 x 699 mm
  • Weight: 13.5kg
  • System: Hydraulic Integrated
SO-3:
  • Diameter: 25A – 50A
  • Size (Width x Height) : 234 x 405 mm
  • Weight: 10.5kg
  • System: Hydraulic Separated
SO-4:
  • Diameter: 50A – 100A
  • Size (Width x Height) : 293 x 581 mm
  • Weight: 21.0kg
  • System: Hydraulic Separated

Note: “Separated” refers to a design where the hydraulic pump and hose parts are separate.

Other
  • Pipe Support Stand (Rex Industries) – ①
  • Water Shut-Off Valve (Prime Industries) – ②
    50A, 75A, 100A, 150A, 200A
  • Cold Ring (Rex Industries) – ③
     25A, 30A, 50A, 75A, 100A, 150A, 200A
