Gas Blowout Prevention Cover – Transparent Gas Operation
Overview

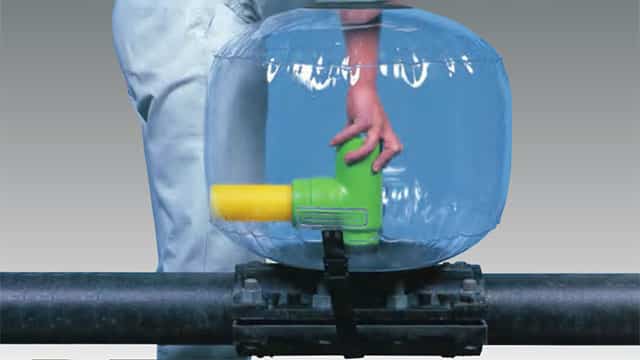

The Gas Blowout Prevention Cover is a tool designed to minimize gas emissions during operations, such as connecting main and branch pipes or branch extractions. Its transparency facilitates swift operations. We offer a comprehensive range of types and sizes, accommodating various applications.
Features
The Gas Blowout Prevention Cover comes in different types, depending on its intended location.
-
TNB-1 is suitable for use after directly drilling into cast iron pipes, transitioning from a plugged state to attaching or replacing a transition fitting.
-
SNB-1 is designed for the gas back hole in cast iron pipes.
-
TNB-2 is applicable for plugging or attaching transition joints after drilling into cast iron or steel pipes using reinforcement joints.
-
SNB-2 can be utilized after perforating cast iron or steel pipes using a reinforcing joint, either for plug stopping or for attaching standard joints.
-
SNB-3 is suitable for lead jointing or attaching and detaching a drill.
Application List
| Used Joint | Transition Fitting | General Fitting |
|---|---|---|
| Direct piercing type | TNB-1 | SNB-1 |
| Saddle clamp type | TNB-2 | SNB-2 |
| Extension Type (Variety) | TNB-3 | SNB-3 |
Applicable range: Low gas pressure pipes (2.5kPa)
Caution: Avoid using with clothing.
How to Use
Direct Piercing Type (SNB-1, TNB-1)

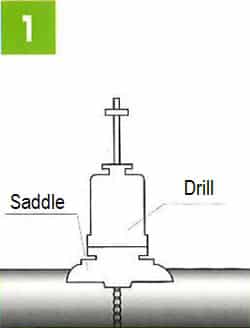

Attach the saddle for the drill to the pipe and pierce it with the drill.

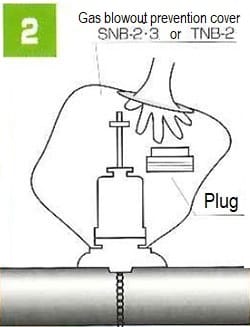

Attach the gas blowout prevention cover (SNB-2, TNB-2) with the plug inserted to the saddle for the the drill.

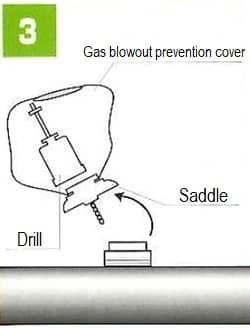

Remove the drill from the drill saddle, screw in the plug, and then remove the saddle for the drill.
*Be careful not to damage the cover with the hole saw.

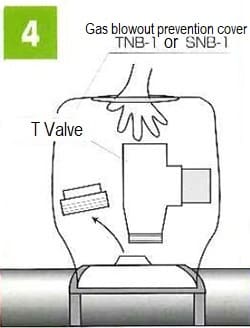

Removing: Attach the gas blowout prevention cover (TNB-1) with the pulp tee inserted to the pipe, remove the plug, and attach the valve tee by hand-tightening to the drilled part.
During gas bagging: SNB-1 can also be used when inserting the gas bag.

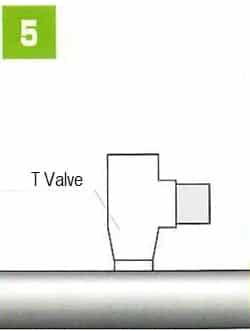

Removal: Remove the gas blowout prevention cover, tighten the valve tee completely, and it is done.
During gas bagging: When inserting the gas bag, complete by stopping the plug.
Saddle Clamp Type (SNB-2, TNB-2)

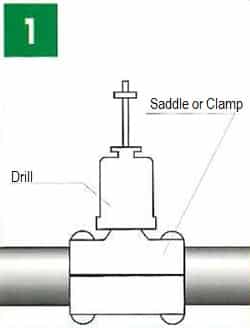

Attach the saddle or clamp to the pipe and make a hole using the drill.

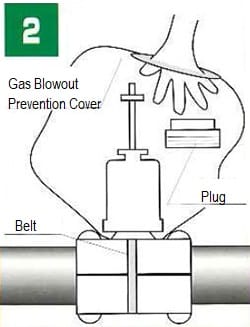

Attach the gas blowout prevention cover (SNB-2TNB-2) with the plug inserted to the saddle or clamp.
Remove the drill and screw the plug into the threaded part of the hole.
Note: Insert and remove tools, materials, etc., from the pipe side. Be careful not to overtighten the band, so the bolts of the clamps do not bite into the no-flow cover.

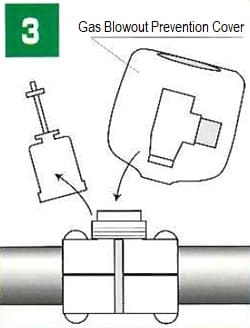

Remove the gas blowout prevention cover and drill from the saddle or clamp. Take the drill out of the gas blowout prevention cover, insert the valve tee, and reattach it to the saddle or clamp.

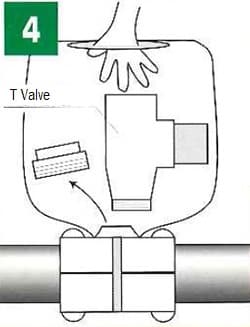

Remove the plug and attach the valve tee to the threaded part of the hole by hand-tightening.

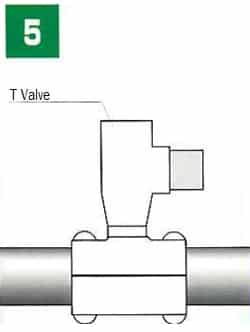

Remove the gas blowout prevention cover and tighten the valve tee completely to finish.
Specification
Gas Blowout Prevention Cover
Direct Piercing Type

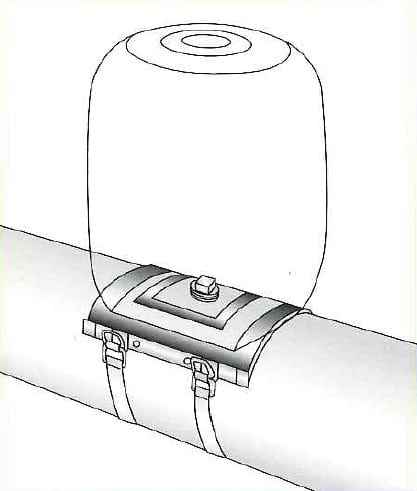

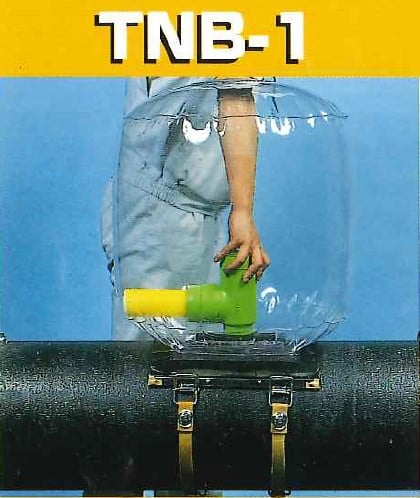

TNB-1
Usage: Used when changing from the state of plug stoppage to the attachment of transition fittings after direct perforation of cast iron pipes.
Available Fittings: Service tee, valve tee, transition valve tee, plug
| Original Pipe Size | Withdrawal Pipe Size | Hight (mm) | Width (mm) |
|---|---|---|---|
| 150A | 50A | 430 | 370 |
| 200A & 300A | 75A | 430 | 370 |

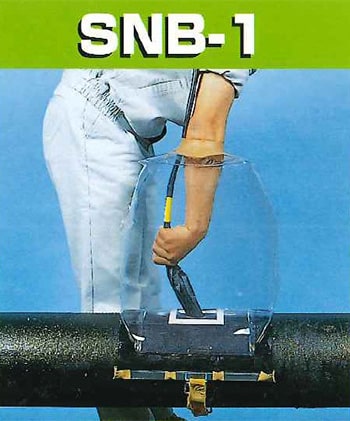

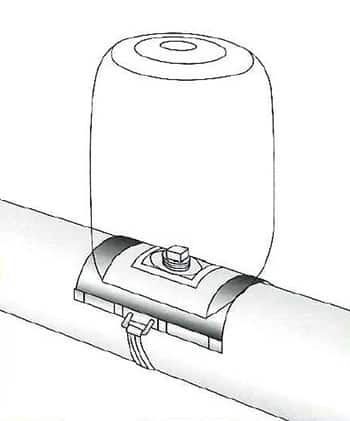

SNB-1
Usage: Used for the gas back hole of cast iron pipes.
Available Fittings: Plug
| Original Pipe Size | Withdrawal Pipe Size | Hight (mm) | Width (mm) |
|---|---|---|---|
| 100A | 32A | 400 | 220 |
| 150A | 50A | 390 | 220 |
| 200A & 300A | 75A | 390 | 240 |
Saddle Clamp Type

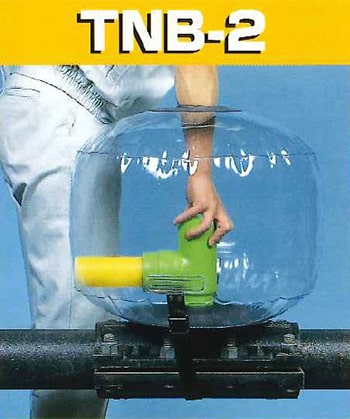

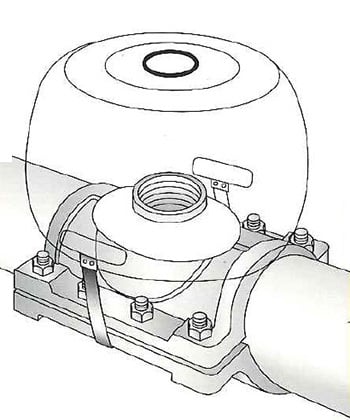

TNB-2
Usage: Used for plugging or attaching transition fittings after perforating cast iron or steel pipes using reinforcing fittings.
Available Fittings: Service tee, valve tee, transition valve tee, plug.
| Withdrawal Pipe Size | Hight (mm) | Width (mm) |
|---|---|---|
| 30A | 270 | 370 |
| 50A | 270 | 500 |
| 75A | 270 | 610 |

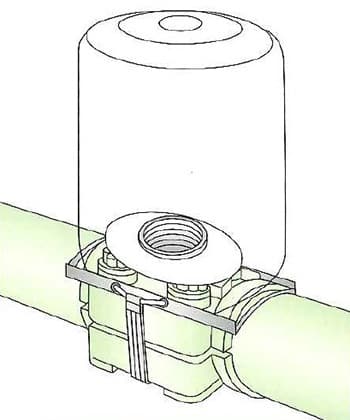

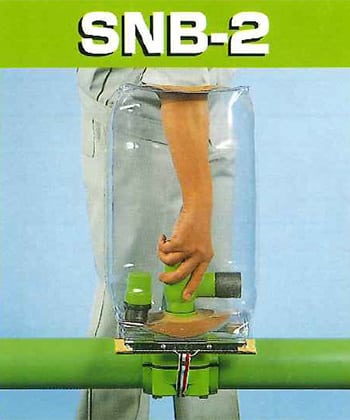

SNB-2
Usage: Used for plugging or attaching general fittings after perforating cast iron or steel pipes using reinforcing fittings.
Available Fittings: Service tee, valve tee, plug.
| Withdrawal Pipe Size | Hight (mm) | Width (mm) |
|---|---|---|
| 32A | 400 | 200 |
| 50A | 400 | 240 |
| 80A | 400 | 280 |
Extension Type

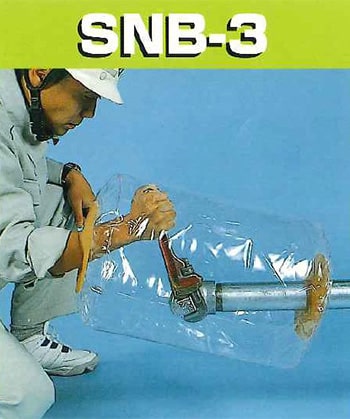

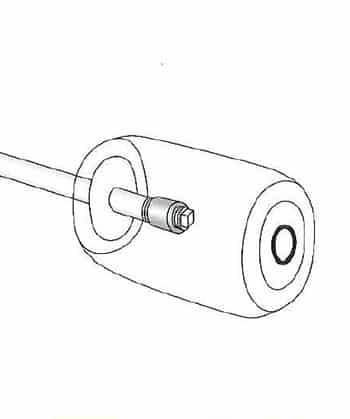

SNB-3
Usage: Used for pre-connection and attachment/detachment of perforating machine.
Available Fittings: Tee, service tee, valve tee, plug.
| Withdrawal Pipe Size | Hight (mm) | Width (mm) |
|---|---|---|
| 30A(25A) | 430 | 260 |
| 50A(40A) | 430 | 310 |
| 80A | 430 | 340 |

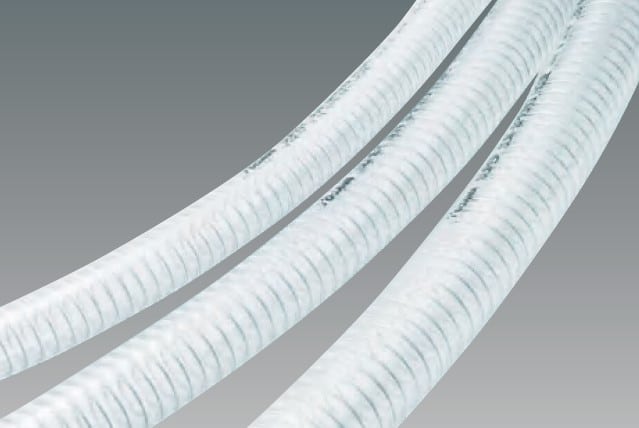

Temporary Bypass Hose
The camlock coupler at the tip comes in two types, aluminum and bronze, and the standard ones are equipped with 634A and 633D.
| Nominal Diameter（A) | Length(mm) |
|---|---|
| 25A | 5000 |
| 32A | 5000 |
| 40A | 5000 |
| 50A | 5000 |
| 80A | 5000 |
